KAF127減速機加電機重量：

KAF127減速機加5.5KW電機重量443KG，KAF127減速機加7.5KW電機重量456KG，KAF127減速機加11KW電機重量498KG，KAF127減速機加15KW電機重量518KG，KAF127減速機加18.5KW電機重量555KG，KAF127減速機加22KW電機重量568KG，KAF127減速機加30KW電機重量636KG，KAF127減速機加37KW電機重量683KG，KAF127減速機加45KW電機重量718KG，KAF127減速機加55KW電機重量803KG，KAF127減速機加75KW電機重量911KG，KAF127減速機加90KW電機重量1051KG。

KAF127減速機加油量：可加齒輪潤滑油

KAF127減速機M4安裝形式加52L，KAF127減速機M3安裝形式加43L，KAF127減速機M2安裝形式加41.5L，KAF127減速機M1安裝形式加21L，KAF127減速機M5安裝形式加40L，KAF127減速機M6安裝形式加40L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時，您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

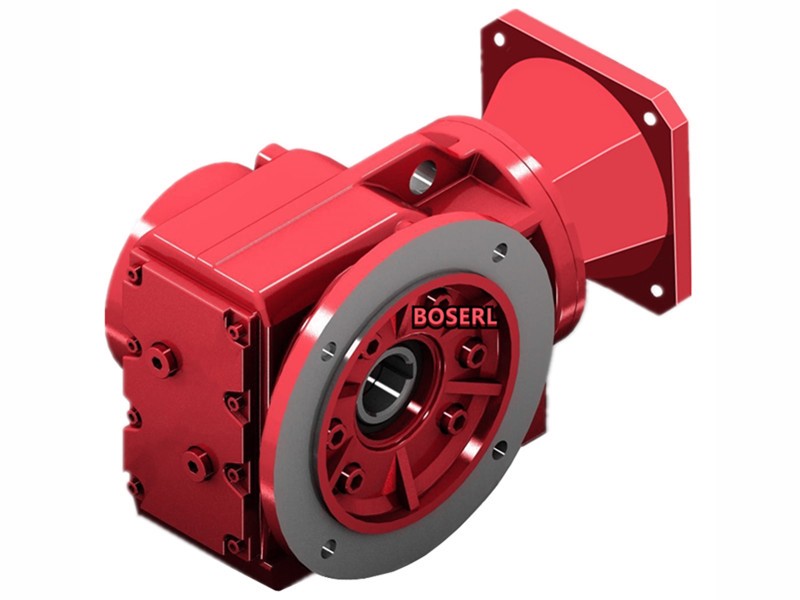

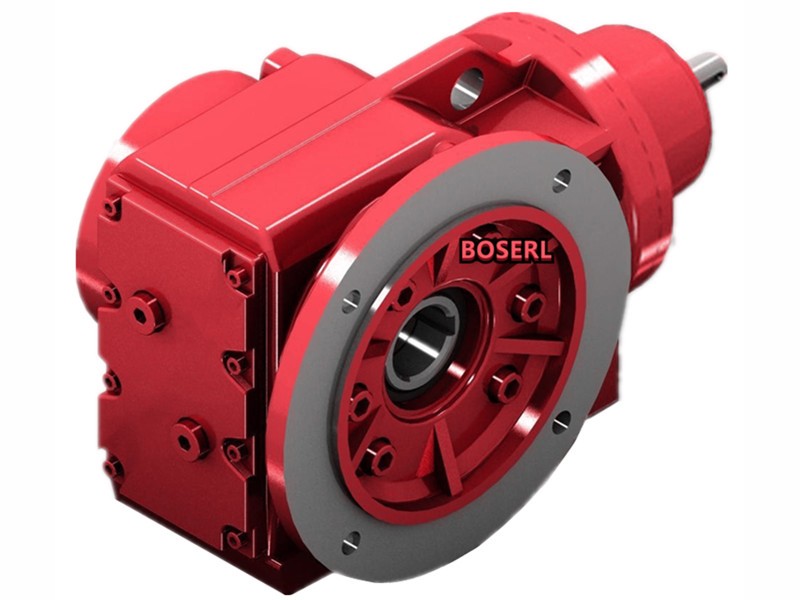

KAF127減速機實物圖：圖一為KAF127立式安裝形式直角空心軸螺旋錐齒輪減速機，圖二K127臥式安裝形式螺旋錐齒輪減速電機，圖三為KF127立式安裝形式實心軸輸出螺旋錐齒輪減速電機，圖四為KA127臥式安裝形式空心軸螺旋錐齒輪減速機。

KAF127減速機型號表示方法：

KAF127減速機型號結構KAF127-B45KW-4P-減速比-安裝形式-接線盒位置。

KAF127減速機性能參數表結構說明：Input Configuration代表輸入加置，C防雨罩，V強制冷卻風扇，RS逆止器，TF電機熱保護裝置，KAF127，K127，KF127，KA127減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置加自鎖功能。

KAF127減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝形式，方向為:從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。直角減速機

KAF127減速機參數：

KAF127減速機輸出扭矩13000N.m，12100N.m，8530N.m，8000N.m，7230N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

KAF127減速機減速比146.07比，136.14比，122.48比，110.18比，89.89比，81.98比，70.95比，62.60比，54.07比，47.82比，40.19比，36.25比，31.37比，27.68比，23.91比，21.15比，17.77比，14.35比，12.79比，10.74比，8.68比

KAF127減速機輸出轉數9.6轉，10轉，11轉，13轉，16轉，17轉，20轉，22轉，26轉，29轉，35轉，39轉，45轉，51轉，59轉，66轉，79轉，98轉，109轉，130轉，161轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KAF127減速機電機可加單相，直流，變頻，剎車，防爆，伺服，交流，三相電機KAF127加5.5KW，KAF127加7.5KW，KAF127加11KW，KAF127加15KW，KAF127加18.5KW，KAF127加22KW，KAF127加30KW，KAF127加37KW，KAF127加45KW，KAF127加55KW，KAF127加75KW，KAF127加90KW。

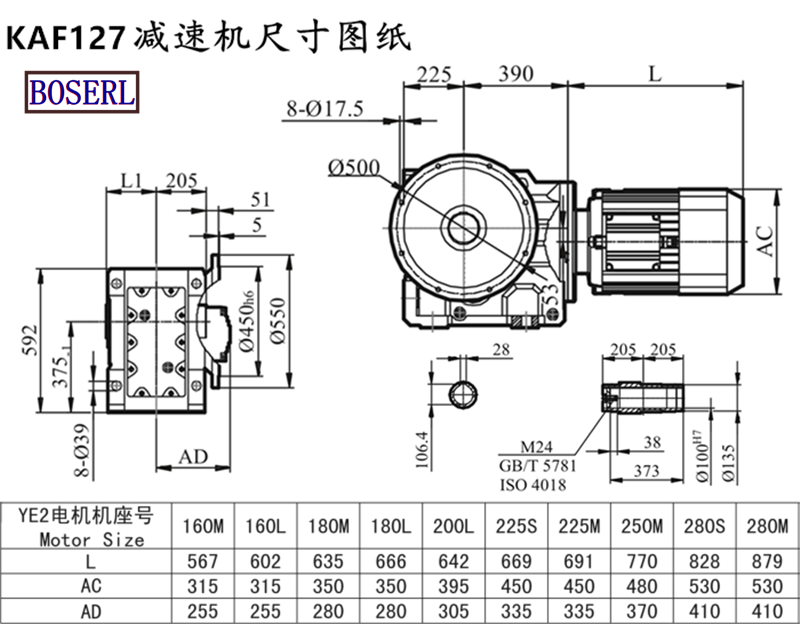

KAF127減速機外觀尺寸：輸出孔直徑Φ100+鍵6.4（可定做），高560*寬456（帶輸出法蘭）*長615

KAF127減速機型號：KAF127AQA80,KAF127AQA100,KAF127AQA115,KAF127AQA140,KAF127AQA160,KAF127AQA190,KAF127AQH80,KAF127AQH100,KAF127AQH115,KAF127AQH140,KAF127AQH160,KAF127AQH190,JRTKAF127-Y112M4,JRTKAF127-Y11KW,JRTKAF127-Y132M4,JRTKAF127-Y15KW,JRTKAF127-Y160M4,JRTKAF127-Y18.5KW,JRTKAF127-Y180M4,JRTKAF127-Y200M4,JRTKAF127-Y225M4,JRTKAF127-Y22KW,JRTKAF127-Y250M4,JRTKAF127-Y280M4,JRTKAF127-Y30KW,JRTKAF127-Y37KW,JRTKAF127-Y45KW,JRTKAF127-Y4KW,JRTKAF127-Y5.5KW,JRTKAF127-Y55KW,JRTKAF127-Y7.5KW,JRTKAF127-Y75KW,JRTKAF127-YEJ112M4,JRTKAF127-YEJ132M4,JRTKAF127-YEJ160M4,JRTKAF127-YEJ180M4,JRTKAF127-YEJ200M4,JRTKAF127-YEJ225M4,JRTKAF127-YEJ250M4,JRTKAF127-YEJ280M4,JRTKAF127-YS112M4,JRTKAF127-YS132M4,JRTKAF127-YS160M4,JRTKAF127-YS180M4,JRTKAF127-YS200M4,JRTKAF127-YS225M4,JRTKAF127-YS250M4,JRTKAF127-YS280M4,JRTKAF127-YVP112M4,JRTKAF127-YVP132M4,JRTKAF127-YVP160M4,JRTKAF127-YVP180M4,JRTKAF127-YVP200M4,JRTKAF127-YVP225M4,JRTKAF127-YVP250M4,JRTKAF127-YVP280M4,JRTKAF127-YVPEJ112M4,JRTKAF127-YVPEJ132M4,JRTKAF127-YVPEJ160M4,JRTKAF127-YVPEJ180M4,JRTKAF127-YVPEJ200M4,JRTKAF127-YVPEJ225M4,JRTKAF127-YVPEJ250M4,JRTKAF127-YVPEJ280M4,EWKAF127-Y112M4,EWKAF127-Y11KW,EWKAF127-Y132M4,EWKAF127-Y15KW,EWKAF127-Y160M4,EWKAF127-Y18.5KW,EWKAF127-Y180M4,EWKAF127-Y200M4,EWKAF127-Y225M4,EWKAF127-Y22KW,EWKAF127-Y250M4,EWKAF127-Y280M4,EWKAF127-Y30KW,EWKAF127-Y37KW,EWKAF127-Y45KW,EWKAF127-Y4KW,EWKAF127-Y5.5KW,EWKAF127-Y55KW,EWKAF127-Y7.5KW,EWKAF127-Y75KW,EWKAF127-YEJ112M4,EWKAF127-YEJ132M4,EWKAF127-YEJ160M4,EWKAF127-YEJ180M4,EWKAF127-YEJ200M4,EWKAF127-YEJ225M4,EWKAF127-YEJ250M4,EWKAF127-YEJ280M4,EWKAF127-YS112M4,EWKAF127-YS132M4,EWKAF127-YS160M4,EWKAF127-YS180M4,EWKAF127-YS200M4,EWKAF127-YS225M4,EWKAF127-YS250M4,EWKAF127-YS280M4,EWKAF127-YVP112M4,EWKAF127-YVP132M4,EWKAF127-YVP160M4,EWKAF127-YVP180M4,EWKAF127-YVP200M4,EWKAF127-YVP225M4,EWKAF127-YVP250M4,EWKAF127-YVP280M4,EWKAF127-YVPEJ112M4,EWKAF127-YVPEJ132M4,EWKAF127-YVPEJ160M4,EWKAF127-YVPEJ180M4,EWKAF127-YVPEJ200M4,EWKAF127-YVPEJ225M4,EWKAF127-YVPEJ250M4,EWKAF127-YVPEJ280M4,SLKAF127-Y112M4,SLKAF127-Y11KW,SLKAF127-Y132M4,SLKAF127-Y15KW,SLKAF127-Y160M4,SLKAF127-Y18.5KW,SLKAF127-Y180M4,SLKAF127-Y200M4,SLKAF127-Y225M4,SLKAF127-Y22KW,SLKAF127-Y250M4,SLKAF127-Y280M4,SLKAF127-Y30KW,SLKAF127-Y37KW,SLKAF127-Y45KW,SLKAF127-Y4KW,SLKAF127-Y5.5KW,SLKAF127-Y55KW,SLKAF127-Y7.5KW,SLKAF127-Y75KW,SLKAF127-YEJ112M4,SLKAF127-YEJ132M4,SLKAF127-YEJ160M4,SLKAF127-YEJ180M4,SLKAF127-YEJ200M4,SLKAF127-YEJ225M4,SLKAF127-YEJ250M4,SLKAF127-YEJ280M4,SLKAF127-YS112M4,SLKAF127-YS132M4,SLKAF127-YS160M4,SLKAF127-YS180M4,SLKAF127-YS200M4,SLKAF127-YS225M4,SLKAF127-YS250M4,SLKAF127-YS280M4,SLKAF127-YVP112M4,SLKAF127-YVP132M4,SLKAF127-YVP160M4,SLKAF127-YVP180M4,SLKAF127-YVP200M4,SLKAF127-YVP225M4,SLKAF127-YVP250M4,SLKAF127-YVP280M4,SLKAF127-YVPEJ112M4,SLKAF127-YVPEJ132M4,SLKAF127-YVPEJ160M4,SLKAF127-YVPEJ180M4,SLKAF127-YVPEJ200M4,SLKAF127-YVPEJ225M4,SLKAF127-YVPEJ250M4,SLKAF127-YVPEJ280M4,DSZKAF127-Y112M4,DSZKAF127-Y11KW,DSZKAF127-Y132M4,DSZKAF127-Y15KW,DSZKAF127-Y160M4,DSZKAF127-Y18.5KW,DSZKAF127-Y180M4,DSZKAF127-Y200M4,DSZKAF127-Y225M4,DSZKAF127-Y22KW,DSZKAF127-Y250M4,DSZKAF127-Y280M4,DSZKAF127-Y30KW,DSZKAF127-Y37KW,DSZKAF127-Y45KW,DSZKAF127-Y4KW,DSZKAF127-Y5.5KW,DSZKAF127-Y55KW,DSZKAF127-Y7.5KW,DSZKAF127-Y75KW,DSZKAF127-YEJ112M4,DSZKAF127-YEJ132M4,DSZKAF127-YEJ160M4,DSZKAF127-YEJ180M4,DSZKAF127-YEJ200M4,DSZKAF127-YEJ225M4,DSZKAF127-YEJ250M4,DSZKAF127-YEJ280M4,DSZKAF127-YS112M4,DSZKAF127-YS132M4,DSZKAF127-YS160M4,DSZKAF127-YS180M4,DSZKAF127-YS200M4,DSZKAF127-YS225M4,DSZKAF127-YS250M4,DSZKAF127-YS280M4,DSZKAF127-YVP112M4,DSZKAF127-YVP132M4,DSZKAF127-YVP160M4,DSZKAF127-YVP180M4,DSZKAF127-YVP200M4,DSZKAF127-YVP225M4,DSZKAF127-YVP250M4,DSZKAF127-YVP280M4,DSZKAF127-YVPEJ112M4,DSZKAF127-YVPEJ132M4,DSZKAF127-YVPEJ160M4,DSZKAF127-YVPEJ180M4,DSZKAF127-YVPEJ200M4,DSZKAF127-YVPEJ225M4,DSZKAF127-YVPEJ250M4,DSZKAF127-YVPEJ280M4,BKAF127-Y112M4,BKAF127-Y11KW,BKAF127-Y132M4,BKAF127-Y15KW,BKAF127-Y160M4,BKAF127-Y18.5KW,BKAF127-Y180M4,BKAF127-Y200M4,BKAF127-Y225M4,BKAF127-Y22KW,BKAF127-Y250M4,BKAF127-Y280M4,BKAF127-Y30KW,BKAF127-Y37KW,BKAF127-Y45KW,BKAF127-Y4KW,BKAF127-Y5.5KW,BKAF127-Y55KW,BKAF127-Y7.5KW,BKAF127-Y75KW,BKAF127-YEJ112M4,BKAF127-YEJ132M4,BKAF127-YEJ160M4,BKAF127-YEJ180M4,BKAF127-YEJ200M4,BKAF127-YEJ225M4,BKAF127-YEJ250M4,BKAF127-YEJ280M4,BKAF127-YS112M4,BKAF127-YS132M4,BKAF127-YS160M4,BKAF127-YS180M4,BKAF127-YS200M4,BKAF127-YS225M4,BKAF127-YS250M4,BKAF127-YS280M4,BKAF127-YVP112M4,BKAF127-YVP132M4,BKAF127-YVP160M4,BKAF127-YVP180M4,BKAF127-YVP200M4,BKAF127-YVP225M4,BKAF127-YVP250M4,BKAF127-YVP280M4,BKAF127-YVPEJ112M4,BKAF127-YVPEJ132M4,BKAF127-YVPEJ160M4,BKAF127-YVPEJ180M4,BKAF127-YVPEJ200M4,BKAF127-YVPEJ225M4,BKAF127-YVPEJ250M4,BKAF127-YVPEJ280M4,GKAF127-Y112M4,GKAF127-Y11KW,GKAF127-Y132M4,GKAF127-Y15KW,GKAF127-Y160M4,GKAF127-Y18.5KW,GKAF127-Y180M4,GKAF127-Y200M4,GKAF127-Y225M4,GKAF127-Y22KW,GKAF127-Y250M4,GKAF127-Y280M4,GKAF127-Y30KW,GKAF127-Y37KW,GKAF127-Y45KW,GKAF127-Y4KW,GKAF127-Y5.5KW,GKAF127-Y55KW,GKAF127-Y7.5KW,GKAF127-Y75KW,GKAF127-YEJ112M4,GKAF127-YEJ132M4,GKAF127-YEJ160M4,GKAF127-YEJ180M4,GKAF127-YEJ200M4,GKAF127-YEJ225M4,GKAF127-YEJ250M4,GKAF127-YEJ280M4,GKAF127-YS112M4,GKAF127-YS132M4,GKAF127-YS160M4,GKAF127-YS180M4,GKAF127-YS200M4,GKAF127-YS225M4,GKAF127-YS250M4,GKAF127-YS280M4,GKAF127-YVP112M4,GKAF127-YVP132M4,GKAF127-YVP160M4,GKAF127-YVP180M4,GKAF127-YVP200M4,GKAF127-YVP225M4,GKAF127-YVP250M4,GKAF127-YVP280M4,GKAF127-YVPEJ112M4,GKAF127-YVPEJ132M4,GKAF127-YVPEJ160M4,GKAF127-YVPEJ180M4,GKAF127-YVPEJ200M4,GKAF127-YVPEJ225M4,GKAF127-YVPEJ250M4,GKAF127-YVPEJ280M4,KCAF127-Y112M4,KCAF127-Y11KW,KCAF127-Y132M4,KCAF127-Y15KW,KCAF127-Y160M4,KCAF127-Y18.5KW,KCAF127-Y180M4,KCAF127-Y200M4,KCAF127-Y225M4,KCAF127-Y22KW,KCAF127-Y250M4,KCAF127-Y280M4,KCAF127-Y30KW,KCAF127-Y37KW,KCAF127-Y45KW,KCAF127-Y4KW,KCAF127-Y5.5KW,KCAF127-Y55KW,KCAF127-Y7.5KW,KCAF127-Y75KW,KCAF127-YEJ112M4,KCAF127-YEJ132M4,KCAF127-YEJ160M4,KCAF127-YEJ180M4,KCAF127-YEJ200M4,KCAF127-YEJ225M4,KCAF127-YEJ250M4,KCAF127-YEJ280M4,KCAF127-YS112M4,KCAF127-YS132M4,KCAF127-YS160M4,KCAF127-YS180M4,KCAF127-YS200M4,KCAF127-YS225M4,KCAF127-YS250M4,KCAF127-YS280M4,KCAF127-YVP112M4,KCAF127-YVP132M4,KCAF127-YVP160M4,KCAF127-YVP180M4,KCAF127-YVP200M4,KCAF127-YVP225M4,KCAF127-YVP250M4,KCAF127-YVP280M4,KCAF127-YVPEJ112M4,KCAF127-YVPEJ132M4,KCAF127-YVPEJ160M4,KCAF127-YVPEJ180M4,KCAF127-YVPEJ200M4,KCAF127-YVPEJ225M4,KCAF127-YVPEJ250M4,KCAF127-YVPEJ280M4,MTJAF127-Y112M4,MTJAF127-Y11KW,MTJAF127-Y132M4,MTJAF127-Y15KW,MTJAF127-Y160M4,MTJAF127-Y18.5KW,MTJAF127-Y180M4,MTJAF127-Y200M4,MTJAF127-Y225M4,MTJAF127-Y22KW,MTJAF127-Y250M4,MTJAF127-Y280M4,MTJAF127-Y30KW,MTJAF127-Y37KW,MTJAF127-Y45KW,MTJAF127-Y4KW,MTJAF127-Y5.5KW,MTJAF127-Y55KW,MTJAF127-Y7.5KW,MTJAF127-Y75KW,MTJAF127-YEJ112M4,MTJAF127-YEJ132M4,MTJAF127-YEJ160M4,MTJAF127-YEJ180M4,MTJAF127-YEJ200M4,MTJAF127-YEJ225M4,MTJAF127-YEJ250M4,MTJAF127-YEJ280M4,MTJAF127-YS112M4,MTJAF127-YS132M4,MTJAF127-YS160M4,MTJAF127-YS180M4,MTJAF127-YS200M4,MTJAF127-YS225M4,MTJAF127-YS250M4,MTJAF127-YS280M4,MTJAF127-YVP112M4,MTJAF127-YVP132M4,MTJAF127-YVP160M4,MTJAF127-YVP180M4,MTJAF127-YVP200M4,MTJAF127-YVP225M4,MTJAF127-YVP250M4,MTJAF127-YVP280M4,MTJAF127-YVPEJ112M4,MTJAF127-YVPEJ132M4,MTJAF127-YVPEJ160M4,MTJAF127-YVPEJ180M4,MTJAF127-YVPEJ200M4,MTJAF127-YVPEJ225M4,MTJAF127-YVPEJ250M4,MTJAF127-YVPEJ280M4,WXKAF127-WSS112M4,WXKAF127-WSS11KW,WXKAF127-WSS132M4,WXKAF127-WSS15KW,WXKAF127-WSS160M4,WXKAF127-WSS18.5KW,WXKAF127-WSS180M4,WXKAF127-WSS200M4,WXKAF127-WSS225M4,WXKAF127-WSS22KW,WXKAF127-WSS250M4,WXKAF127-WSS280M4,WXKAF127-WSS30KW,WXKAF127-WSS37KW,WXKAF127-WSS45KW,WXKAF127-WSS4KW,WXKAF127-WSS5.5KW,WXKAF127-WSS55KW,WXKAF127-WSS7.5KW,WXKAF127-WSS75KW,WXKAF127-WSSB112M4,WXKAF127-WSSB132M4,WXKAF127-WSSB160M4,WXKAF127-WSSB180M4,WXKAF127-WSSB200M4,WXKAF127-WSSB225M4,WXKAF127-WSSB250M4,WXKAF127-WSSB280M4,WXKAF127-WSSVP112M4,WXKAF127-WSSVP132M4,WXKAF127-WSSVP160M4,WXKAF127-WSSVP180M4,WXKAF127-WSSVP200M4,WXKAF127-WSSVP225M4,WXKAF127-WSSVP250M4,WXKAF127-WSSVP280M4,WXKAF127-WSSVPB112M4,WXKAF127-WSSVPB132M4,WXKAF127-WSSVPB160M4,WXKAF127-WSSVPB180M4,WXKAF127-WSSVPB200M4,WXKAF127-WSSVPB225M4,WXKAF127-WSSVPB250M4,WXKAF127-WSSVPB280M4。二級減速機
