KAF107減速機加電機重量：

KAF107減速機加3KW電機重量288KG，KAF107減速機加4KW電機重量299KG，KAF107減速機加5.5KW電機重量313KG，KAF107減速機加7.5KW電機重量326KG，KAF107減速機加11KW電機重量368KG，KAF107減速機加15KW電機重量388KG，KAF107減速機加18.5KW電機重量425KG，KAF107減速機加22KW電機重量438KG，KAF107減速機加30KW電機重量506KG，KAF107減速機加37KW電機重量553KG，KAF107減速機加45KW電機重量588KG。

KAF107減速機加油量：可加齒輪潤滑油

KAF107減速機M4安裝形式加32L，KAF107減速機M3安裝形式加24L，KAF107減速機M2安裝形式加20.5L，KAF107減速機M1安裝形式加10L，KAF107減速機M5安裝形式加24L，KAF107減速機M6安裝形式加24L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時，您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

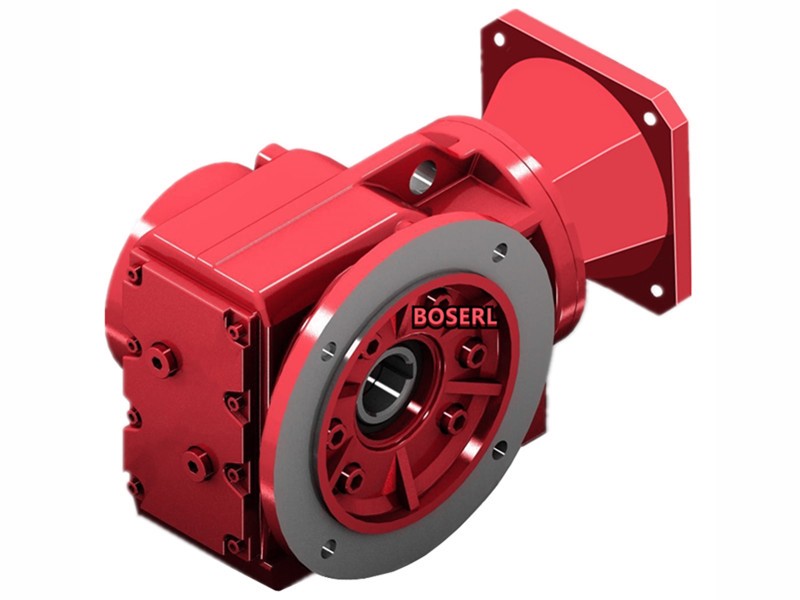

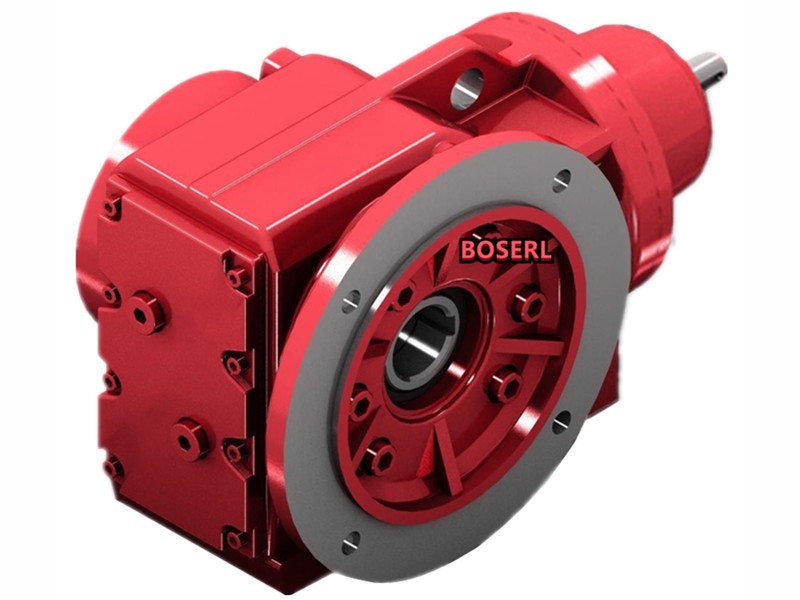

KAF107減速機實物圖：圖一為KAF107立式安裝形式直角空心軸螺旋錐齒輪減速機，圖二K107臥式安裝形式螺旋錐齒輪減速電機，圖三為KF107立式安裝形式實心軸輸出螺旋錐齒輪減速電機，圖四為KA107臥式安裝形式空心軸螺旋錐齒輪減速機。

KAF107減速機型號表示方法：

KAF107減速機型號結構KAF107-B22KW-4P-減速比-安裝形式-接線盒位置。

KAF107減速機性能參數表結構說明：Input Configuration代表輸入加置，C防雨罩，V強制冷卻風扇，RS逆止器，TF電機熱保護裝置，KAF107，K107，KF107，KA107減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置加自鎖功能。

KAF107減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝形式，方向為:從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。直角減速機

KAF107減速機參數：

KAF107減速機輸出扭矩3600N.m，4070N.m，4190N.m，4300N.m，6800N.m，6890N.m，7050N.m，7200N.m，7360N.m，7840N.m，8000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

KAF107減速機減速比7.35比，8.69比，9.94比，11.73比，13.43比，14.64比，16.75比，19.74比，22.62比，26.32比，29比，31.28比，32.69比，37比，42.33比，49.9比，57.17比，66.52比，73.3比，82.61比，90.96比，100.75比，112.41比，121.46比，143.47比

KAF107減速機輸出轉數9.8轉，12轉，14轉，15轉，17轉，19轉，21轉，24轉，28轉，33轉，38轉，43轉，45轉，48轉，53轉，62轉，71轉，84轉，96轉，104轉，119轉，141轉，161轉，190轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KAF107減速機電機可加單相，直流，變頻，剎車，防爆，伺服，交流，三相電機KAF107加3KW，KAF107加4KW，KAF107加5.5KW，KAF107加7.5KW，KAF107加11KW，KAF107加15KW，KAF107加18.5KW，KAF107加22KW，KAF107加30KW，KAF107加37KW，KAF107加45KW。

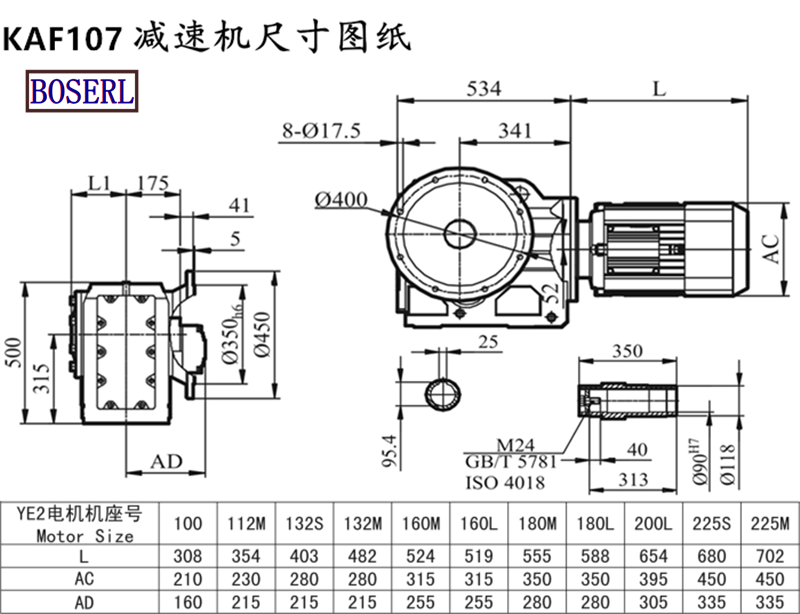

KAF107減速機外觀尺寸：輸出孔直徑Φ90+鍵5.4（可定做），高500*寬391（帶輸出法蘭）*長539

KAF107減速機型號：KAF107AQA80,KAF107AQA100,KAF107AQA115,KAF107AQA140,KAF107AQA160,KAF107AQA190,KAF107AQH80,KAF107AQH100,KAF107AQH115,KAF107AQH140,KAF107AQH160,KAF107AQH190,JRTKAF107-Y100M4,JRTKAF107-Y112M4,JRTKAF107-Y11KW,JRTKAF107-Y132M4,JRTKAF107-Y15KW,JRTKAF107-Y160M4,JRTKAF107-Y18.5KW,JRTKAF107-Y180M4,JRTKAF107-Y200M4,JRTKAF107-Y225M4,JRTKAF107-Y22KW,JRTKAF107-Y30KW,JRTKAF107-Y37KW,JRTKAF107-Y3KW,JRTKAF107-Y45KW,JRTKAF107-Y4KW,JRTKAF107-Y5.5KW,JRTKAF107-Y7.5KW,JRTKAF107-YEJ100M4,JRTKAF107-YEJ112M4,JRTKAF107-YEJ132M4,JRTKAF107-YEJ160M4,JRTKAF107-YEJ180M4,JRTKAF107-YEJ200M4,JRTKAF107-YEJ225M4,JRTKAF107-YS100M4,JRTKAF107-YS112M4,JRTKAF107-YS132M4,JRTKAF107-YS160M4,JRTKAF107-YS180M4,JRTKAF107-YS200M4,JRTKAF107-YS225M4,JRTKAF107-YVP100M4,JRTKAF107-YVP112M4,JRTKAF107-YVP132M4,JRTKAF107-YVP160M4,JRTKAF107-YVP180M4,JRTKAF107-YVP200M4,JRTKAF107-YVP225M4,JRTKAF107-YVPEJ100M4,JRTKAF107-YVPEJ112M4,JRTKAF107-YVPEJ132M4,JRTKAF107-YVPEJ160M4,JRTKAF107-YVPEJ180M4,JRTKAF107-YVPEJ200M4,JRTKAF107-YVPEJ225M4,EWKAF107-Y100M4,EWKAF107-Y112M4,EWKAF107-Y11KW,EWKAF107-Y132M4,EWKAF107-Y15KW,EWKAF107-Y160M4,EWKAF107-Y18.5KW,EWKAF107-Y180M4,EWKAF107-Y200M4,EWKAF107-Y225M4,EWKAF107-Y22KW,EWKAF107-Y30KW,EWKAF107-Y37KW,EWKAF107-Y3KW,EWKAF107-Y45KW,EWKAF107-Y4KW,EWKAF107-Y5.5KW,EWKAF107-Y7.5KW,EWKAF107-YEJ100M4,EWKAF107-YEJ112M4,EWKAF107-YEJ132M4,EWKAF107-YEJ160M4,EWKAF107-YEJ180M4,EWKAF107-YEJ200M4,EWKAF107-YEJ225M4,EWKAF107-YS100M4,EWKAF107-YS112M4,EWKAF107-YS132M4,EWKAF107-YS160M4,EWKAF107-YS180M4,EWKAF107-YS200M4,EWKAF107-YS225M4,EWKAF107-YVP100M4,EWKAF107-YVP112M4,EWKAF107-YVP132M4,EWKAF107-YVP160M4,EWKAF107-YVP180M4,EWKAF107-YVP200M4,EWKAF107-YVP225M4,EWKAF107-YVPEJ100M4,EWKAF107-YVPEJ112M4,EWKAF107-YVPEJ132M4,EWKAF107-YVPEJ160M4,EWKAF107-YVPEJ180M4,EWKAF107-YVPEJ200M4,EWKAF107-YVPEJ225M4,SLKAF107-Y100M4,SLKAF107-Y112M4,SLKAF107-Y11KW,SLKAF107-Y132M4,SLKAF107-Y15KW,SLKAF107-Y160M4,SLKAF107-Y18.5KW,SLKAF107-Y180M4,SLKAF107-Y200M4,SLKAF107-Y225M4,SLKAF107-Y22KW,SLKAF107-Y30KW,SLKAF107-Y37KW,SLKAF107-Y3KW,SLKAF107-Y45KW,SLKAF107-Y4KW,SLKAF107-Y5.5KW,SLKAF107-Y7.5KW,SLKAF107-YEJ100M4,SLKAF107-YEJ112M4,SLKAF107-YEJ132M4,SLKAF107-YEJ160M4,SLKAF107-YEJ180M4,SLKAF107-YEJ200M4,SLKAF107-YEJ225M4,SLKAF107-YS100M4,SLKAF107-YS112M4,SLKAF107-YS132M4,SLKAF107-YS160M4,SLKAF107-YS180M4,SLKAF107-YS200M4,SLKAF107-YS225M4,SLKAF107-YVP100M4,SLKAF107-YVP112M4,SLKAF107-YVP132M4,SLKAF107-YVP160M4,SLKAF107-YVP180M4,SLKAF107-YVP200M4,SLKAF107-YVP225M4,SLKAF107-YVPEJ100M4,SLKAF107-YVPEJ112M4,SLKAF107-YVPEJ132M4,SLKAF107-YVPEJ160M4,SLKAF107-YVPEJ180M4,SLKAF107-YVPEJ200M4,SLKAF107-YVPEJ225M4,DSZKAF107-Y100M4,DSZKAF107-Y112M4,DSZKAF107-Y11KW,DSZKAF107-Y132M4,DSZKAF107-Y15KW,DSZKAF107-Y160M4,DSZKAF107-Y18.5KW,DSZKAF107-Y180M4,DSZKAF107-Y200M4,DSZKAF107-Y225M4,DSZKAF107-Y22KW,DSZKAF107-Y30KW,DSZKAF107-Y37KW,DSZKAF107-Y3KW,DSZKAF107-Y45KW,DSZKAF107-Y4KW,DSZKAF107-Y5.5KW,DSZKAF107-Y7.5KW,DSZKAF107-YEJ100M4,DSZKAF107-YEJ112M4,DSZKAF107-YEJ132M4,DSZKAF107-YEJ160M4,DSZKAF107-YEJ180M4,DSZKAF107-YEJ200M4,DSZKAF107-YEJ225M4,DSZKAF107-YS100M4,DSZKAF107-YS112M4,DSZKAF107-YS132M4,DSZKAF107-YS160M4,DSZKAF107-YS180M4,DSZKAF107-YS200M4,DSZKAF107-YS225M4,DSZKAF107-YVP100M4,DSZKAF107-YVP112M4,DSZKAF107-YVP132M4,DSZKAF107-YVP160M4,DSZKAF107-YVP180M4,DSZKAF107-YVP200M4,DSZKAF107-YVP225M4,DSZKAF107-YVPEJ100M4,DSZKAF107-YVPEJ112M4,DSZKAF107-YVPEJ132M4,DSZKAF107-YVPEJ160M4,DSZKAF107-YVPEJ180M4,DSZKAF107-YVPEJ200M4,DSZKAF107-YVPEJ225M4,BKAF107-Y100M4,BKAF107-Y112M4,BKAF107-Y11KW,BKAF107-Y132M4,BKAF107-Y15KW,BKAF107-Y160M4,BKAF107-Y18.5KW,BKAF107-Y180M4,BKAF107-Y200M4,BKAF107-Y225M4,BKAF107-Y22KW,BKAF107-Y30KW,BKAF107-Y37KW,BKAF107-Y3KW,BKAF107-Y45KW,BKAF107-Y4KW,BKAF107-Y5.5KW,BKAF107-Y7.5KW,BKAF107-YEJ100M4,BKAF107-YEJ112M4,BKAF107-YEJ132M4,BKAF107-YEJ160M4,BKAF107-YEJ180M4,BKAF107-YEJ200M4,BKAF107-YEJ225M4,BKAF107-YS100M4,BKAF107-YS112M4,BKAF107-YS132M4,BKAF107-YS160M4,BKAF107-YS180M4,BKAF107-YS200M4,BKAF107-YS225M4,BKAF107-YVP100M4,BKAF107-YVP112M4,BKAF107-YVP132M4,BKAF107-YVP160M4,BKAF107-YVP180M4,BKAF107-YVP200M4,BKAF107-YVP225M4,BKAF107-YVPEJ100M4,BKAF107-YVPEJ112M4,BKAF107-YVPEJ132M4,BKAF107-YVPEJ160M4,BKAF107-YVPEJ180M4,BKAF107-YVPEJ200M4,BKAF107-YVPEJ225M4,GKAF107-Y100M4,GKAF107-Y112M4,GKAF107-Y11KW,GKAF107-Y132M4,GKAF107-Y15KW,GKAF107-Y160M4,GKAF107-Y18.5KW,GKAF107-Y180M4,GKAF107-Y200M4,GKAF107-Y225M4,GKAF107-Y22KW,GKAF107-Y30KW,GKAF107-Y37KW,GKAF107-Y3KW,GKAF107-Y45KW,GKAF107-Y4KW,GKAF107-Y5.5KW,GKAF107-Y7.5KW,GKAF107-YEJ100M4,GKAF107-YEJ112M4,GKAF107-YEJ132M4,GKAF107-YEJ160M4,GKAF107-YEJ180M4,GKAF107-YEJ200M4,GKAF107-YEJ225M4,GKAF107-YS100M4,GKAF107-YS112M4,GKAF107-YS132M4,GKAF107-YS160M4,GKAF107-YS180M4,GKAF107-YS200M4,GKAF107-YS225M4,GKAF107-YVP100M4,GKAF107-YVP112M4,GKAF107-YVP132M4,GKAF107-YVP160M4,GKAF107-YVP180M4,GKAF107-YVP200M4,GKAF107-YVP225M4,GKAF107-YVPEJ100M4,GKAF107-YVPEJ112M4,GKAF107-YVPEJ132M4,GKAF107-YVPEJ160M4,GKAF107-YVPEJ180M4,GKAF107-YVPEJ200M4,GKAF107-YVPEJ225M4,KCAF107-Y100M4,KCAF107-Y112M4,KCAF107-Y11KW,KCAF107-Y132M4,KCAF107-Y15KW,KCAF107-Y160M4,KCAF107-Y18.5KW,KCAF107-Y180M4,KCAF107-Y200M4,KCAF107-Y225M4,KCAF107-Y22KW,KCAF107-Y30KW,KCAF107-Y37KW,KCAF107-Y3KW,KCAF107-Y45KW,KCAF107-Y4KW,KCAF107-Y5.5KW,KCAF107-Y7.5KW,KCAF107-YEJ100M4,KCAF107-YEJ112M4,KCAF107-YEJ132M4,KCAF107-YEJ160M4,KCAF107-YEJ180M4,KCAF107-YEJ200M4,KCAF107-YEJ225M4,KCAF107-YS100M4,KCAF107-YS112M4,KCAF107-YS132M4,KCAF107-YS160M4,KCAF107-YS180M4,KCAF107-YS200M4,KCAF107-YS225M4,KCAF107-YVP100M4,KCAF107-YVP112M4,KCAF107-YVP132M4,KCAF107-YVP160M4,KCAF107-YVP180M4,KCAF107-YVP200M4,KCAF107-YVP225M4,KCAF107-YVPEJ100M4,KCAF107-YVPEJ112M4,KCAF107-YVPEJ132M4,KCAF107-YVPEJ160M4,KCAF107-YVPEJ180M4,KCAF107-YVPEJ200M4,KCAF107-YVPEJ225M4,MTJAF107-Y100M4,MTJAF107-Y112M4,MTJAF107-Y11KW,MTJAF107-Y132M4,MTJAF107-Y15KW,MTJAF107-Y160M4,MTJAF107-Y18.5KW,MTJAF107-Y180M4,MTJAF107-Y200M4,MTJAF107-Y225M4,MTJAF107-Y22KW,MTJAF107-Y30KW,MTJAF107-Y37KW,MTJAF107-Y3KW,MTJAF107-Y45KW,MTJAF107-Y4KW,MTJAF107-Y5.5KW,MTJAF107-Y7.5KW,MTJAF107-YEJ100M4,MTJAF107-YEJ112M4,MTJAF107-YEJ132M4,MTJAF107-YEJ160M4,MTJAF107-YEJ180M4,MTJAF107-YEJ200M4,MTJAF107-YEJ225M4,MTJAF107-YS100M4,MTJAF107-YS112M4,MTJAF107-YS132M4,MTJAF107-YS160M4,MTJAF107-YS180M4,MTJAF107-YS200M4,MTJAF107-YS225M4,MTJAF107-YVP100M4,MTJAF107-YVP112M4,MTJAF107-YVP132M4,MTJAF107-YVP160M4,MTJAF107-YVP180M4,MTJAF107-YVP200M4,MTJAF107-YVP225M4,MTJAF107-YVPEJ100M4,MTJAF107-YVPEJ112M4,MTJAF107-YVPEJ132M4,MTJAF107-YVPEJ160M4,MTJAF107-YVPEJ180M4,MTJAF107-YVPEJ200M4,MTJAF107-YVPEJ225M4,WXKAF107-WSS100M4,WXKAF107-WSS112M4,WXKAF107-WSS11KW,WXKAF107-WSS132M4,WXKAF107-WSS15KW,WXKAF107-WSS160M4,WXKAF107-WSS18.5KW,WXKAF107-WSS180M4,WXKAF107-WSS200M4,WXKAF107-WSS225M4,WXKAF107-WSS22KW,WXKAF107-WSS30KW,WXKAF107-WSS37KW,WXKAF107-WSS3KW,WXKAF107-WSS45KW,WXKAF107-WSS4KW,WXKAF107-WSS5.5KW,WXKAF107-WSS7.5KW,WXKAF107-WSSB100M4,WXKAF107-WSSB112M4,WXKAF107-WSSB132M4,WXKAF107-WSSB160M4,WXKAF107-WSSB180M4,WXKAF107-WSSB200M4,WXKAF107-WSSB225M4,WXKAF107-WSSVP100M4,WXKAF107-WSSVP112M4,WXKAF107-WSSVP132M4,WXKAF107-WSSVP160M4,WXKAF107-WSSVP180M4,WXKAF107-WSSVP200M4,WXKAF107-WSSVP225M4,WXKAF107-WSSVPB100M4,WXKAF107-WSSVPB112M4,WXKAF107-WSSVPB132M4,WXKAF107-WSSVPB160M4,WXKAF107-WSSVPB180M4,WXKAF107-WSSVPB200M4,WXKAF107-WSSVPB225M4。二級減速機

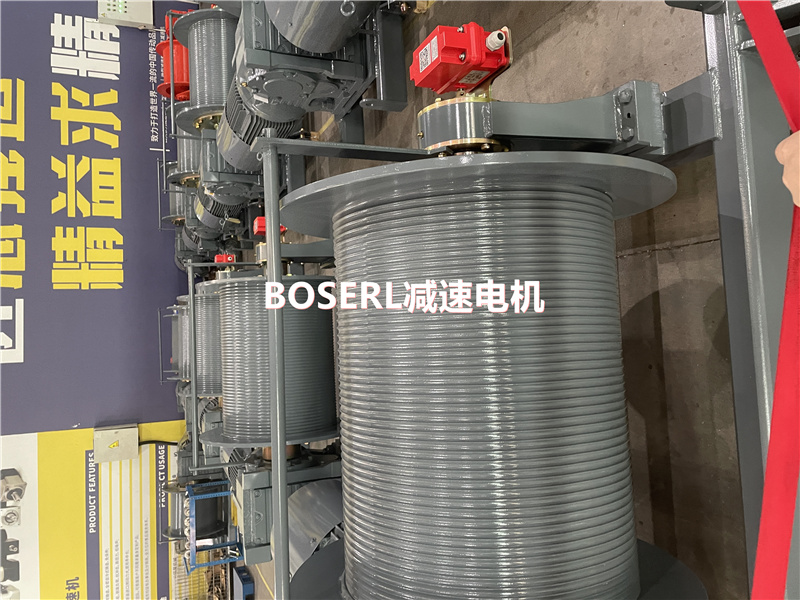

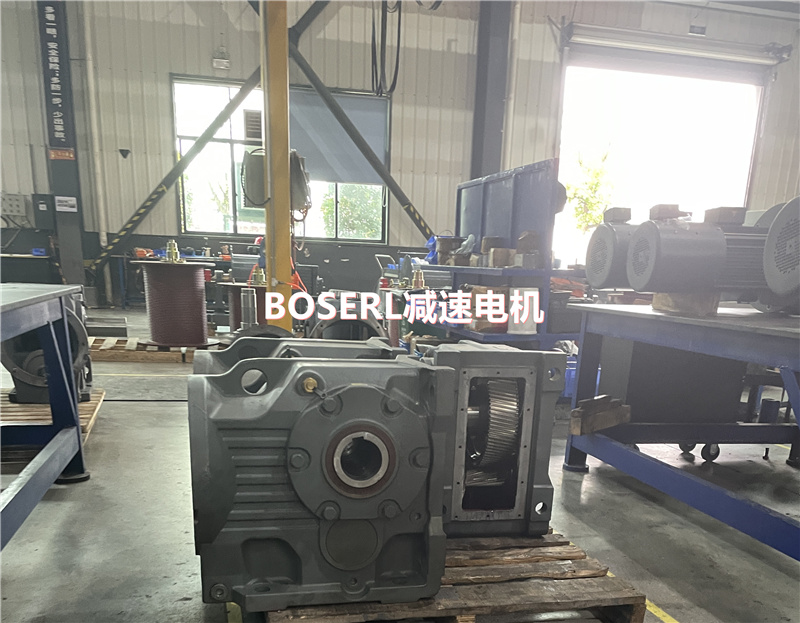

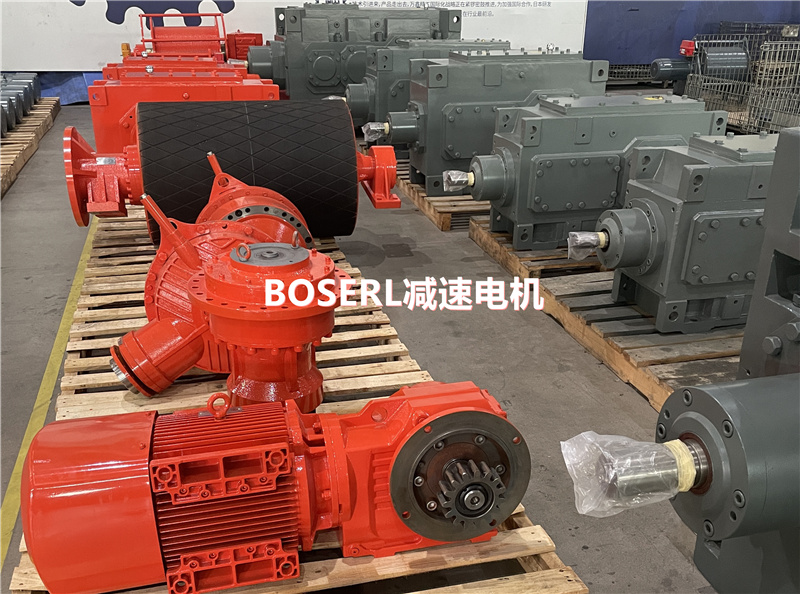

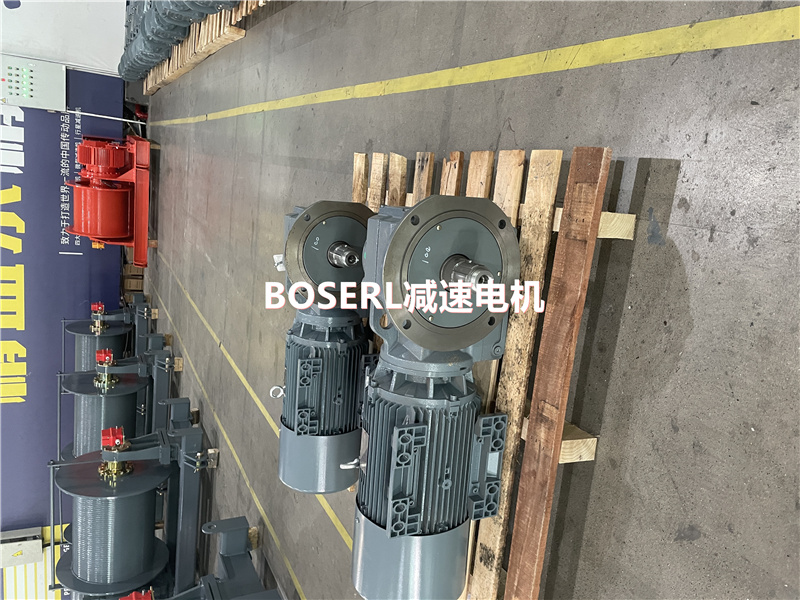

KAF107減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.fulaina.cn/product/list-kafxiliejiansuji-cn.html

推薦類似型號：K107減速機
