SAF67減速機加電機重量：

SAF67減速機加0.25KW電機重量39KG，SAF67減速機加0.37KW電機重量39.5KG，SAF67減速機加0.55KW電機重量44KG，SAF67減速機加0.75KW電機重量45KG，SAF67減速機加1.1KW電機重量49KG，SAF67減速機加1.5KW電機重量52KG，SAF67減速機加2.2KW電機重量61KG，SAF67減速機加3KW電機重量64KG，SAF67減速機加4KW電機重量75KG，SAF67減速機加5.5KW電機重量90KG。

SAF67減速機加油量：可加齒輪潤滑油

SAF67減速機M4安裝形式加2.9L，SAF67減速機M3安裝形式加1.8-2.6L，SAF67減速機M2安裝形式加2L，SAF67減速機M1安裝形式加1L，SAF67減速機M5安裝形式加2.5L，SAF67減速機M6安裝形式加2.5L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時，您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

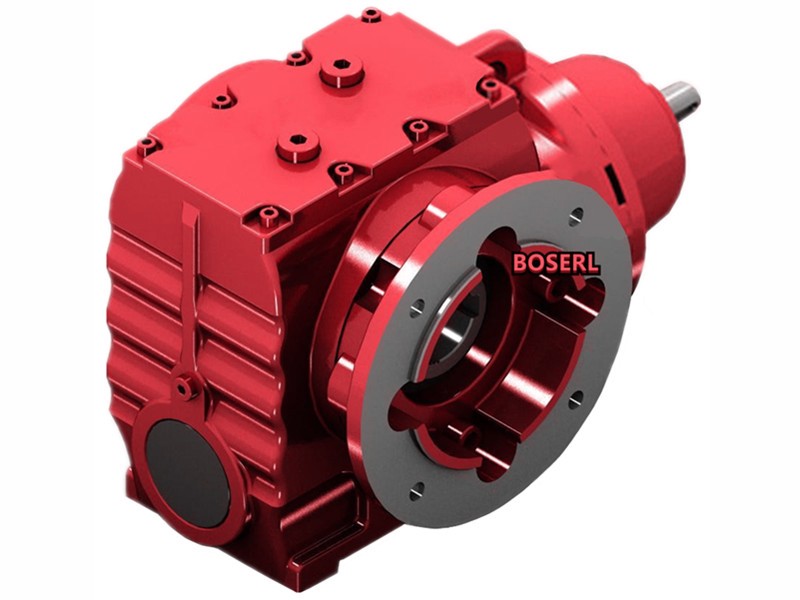

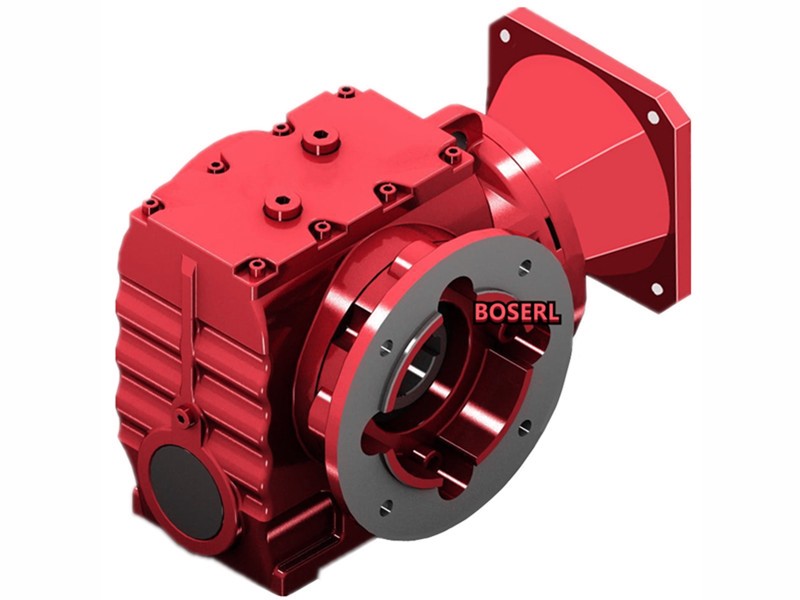

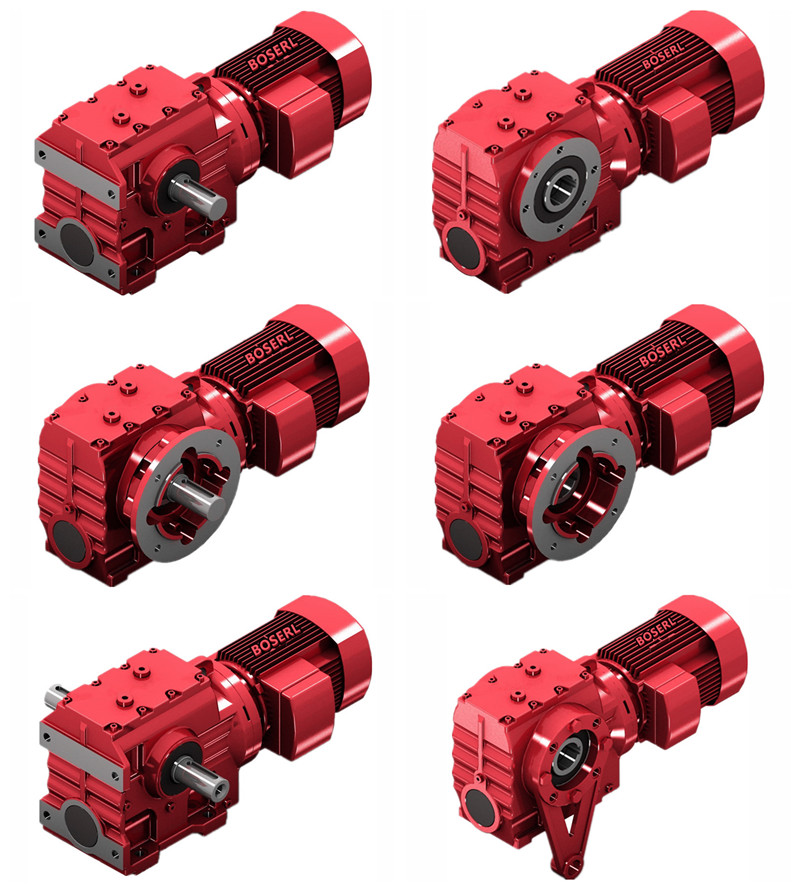

SAF67減速機實物圖：圖一為SAF67立式通孔斜齒輪蝸輪蝸桿減速電機，圖二S67加自鎖功能底腳斜齒輪蝸輪蝸桿減速電機，圖三為SF67具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機，圖四為SA67臥式中孔軸斜齒輪減速機。

SAF67減速機型號表示方法：

SAF67減速機型號結構SAF67-B2.2KW-4P-減速比-安裝形式-接線盒位置。

SAF67減速機性能參數表結構說明：Frame size代表基座規格，K代表服務系數，T扭力臂，E編碼器，HF手動釋放裝置加自鎖功能，TF電機熱保護裝置，SAF67，S67，SF67，SA67減速機機座號，HR手動釋放裝置，N代表徑向負荷，1/min代表輸出轉數。

SAF67減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。自鎖減速機

SAF67減速機參數：

SAF67減速機輸出扭矩240N.m，295N.m，335N.m，340N.m，425N.m，480N.m，500N.m，520N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

SAF67減速機減速比217.41比，190.11比，180.6比，158.45比，134.4比，121.33比，106.75比，100.8比，85.83比，78比，75.06比，67.57比，65.63比，62.35比，58.8比，54.7比，46.4比，41.89比，36.85比，34.8比，29.63比，26.93比，24.44比，23.33比，23.22比，20.37比，20.3比，17.28比，15.60比，13.73比，12.96比，11.03比，10.03比，8.69比，7.56比

SAF67減速機輸出轉數6.4轉，7.4轉，7.8轉，8.8轉，10轉，12轉，13轉，14轉，16轉，18轉，19轉，21轉，22轉，24轉，26轉，30轉，33轉，38轉，40轉，47轉，52轉，57轉，60轉，69轉，81轉，90轉，102轉，108轉，127轉，140轉，161轉，185轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為S系列減速機的輸入）

SAF67減速機電機可加三相，直流，變頻，剎車，防爆，伺服，交流，單相電機SAF67加SAF67加0.25KW，SAF67加0.37KW，SAF67加0.55KW，SAF67加0.75KW，SAF67加1.1KW，SAF67加1.5KW，SAF67加2.2KW，SAF67加3KW，SAF67加4KW，SAF67加5.5KW。

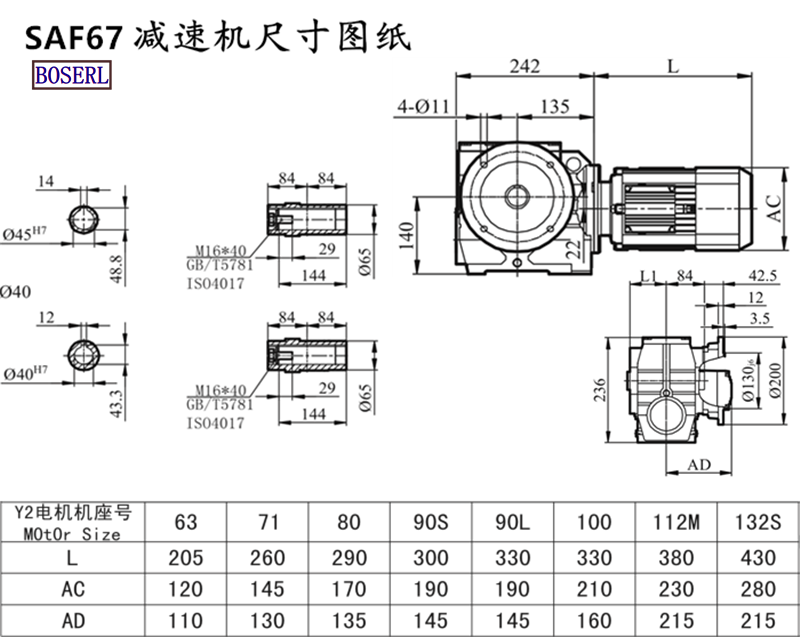

SAF67減速機外觀尺寸：輸出孔直徑Φ45+鍵3.8（可定做），高236*寬214（帶輸出法蘭）*長242

SAF67減速機型號：SAF67AQA80,SAF67AQA100,SAF67AQA115,SAF67AQA140,SAF67AQA160,SAF67AQA190,SAF67AQH80,SAF67AQH100,SAF67AQH115,SAF67AQH140,SAF67AQH160,SAF67AQH190,JRTSAF67-Y0.18KW,JRTSAF67-Y0.25KW,JRTSAF67-Y0.37KW,JRTSAF67-Y0.55KW,JRTSAF67-Y0.75KW,JRTSAF67-Y1.1KW,JRTSAF67-Y1.5KW,JRTSAF67-Y100M4,JRTSAF67-Y112M4,JRTSAF67-Y132M4,JRTSAF67-Y2.2KW,JRTSAF67-Y3KW,JRTSAF67-Y4KW,JRTSAF67-Y5.5KW,JRTSAF67-Y63M4,JRTSAF67-Y71M4,JRTSAF67-Y80M4,JRTSAF67-Y90M4,JRTSAF67-YEJ100M4,JRTSAF67-YEJ112M4,JRTSAF67-YEJ132M4,JRTSAF67-YEJ63M4,JRTSAF67-YEJ71M4,JRTSAF67-YEJ80M4,JRTSAF67-YEJ90M4,JRTSAF67-YS100M4,JRTSAF67-YS112M4,JRTSAF67-YS132M4,JRTSAF67-YS63M4,JRTSAF67-YS71M4,JRTSAF67-YS80M4,JRTSAF67-YS90M4,JRTSAF67-YVP100M4,JRTSAF67-YVP112M4,JRTSAF67-YVP132M4,JRTSAF67-YVP63M4,JRTSAF67-YVP71M4,JRTSAF67-YVP80M4,JRTSAF67-YVP90M4,JRTSAF67-YVPEJ100M4,JRTSAF67-YVPEJ112M4,JRTSAF67-YVPEJ132M4,JRTSAF67-YVPEJ63M4,JRTSAF67-YVPEJ71M4,JRTSAF67-YVPEJ80M4,JRTSAF67-YVPEJ90M4,EWSAF67-Y0.18KW,EWSAF67-Y0.25KW,EWSAF67-Y0.37KW,EWSAF67-Y0.55KW,EWSAF67-Y0.75KW,EWSAF67-Y1.1KW,EWSAF67-Y1.5KW,EWSAF67-Y100M4,EWSAF67-Y112M4,EWSAF67-Y132M4,EWSAF67-Y2.2KW,EWSAF67-Y3KW,EWSAF67-Y4KW,EWSAF67-Y5.5KW,EWSAF67-Y63M4,EWSAF67-Y71M4,EWSAF67-Y80M4,EWSAF67-Y90M4,EWSAF67-YEJ100M4,EWSAF67-YEJ112M4,EWSAF67-YEJ132M4,EWSAF67-YEJ63M4,EWSAF67-YEJ71M4,EWSAF67-YEJ80M4,EWSAF67-YEJ90M4,EWSAF67-YS100M4,EWSAF67-YS112M4,EWSAF67-YS132M4,EWSAF67-YS63M4,EWSAF67-YS71M4,EWSAF67-YS80M4,EWSAF67-YS90M4,EWSAF67-YVP100M4,EWSAF67-YVP112M4,EWSAF67-YVP132M4,EWSAF67-YVP63M4,EWSAF67-YVP71M4,EWSAF67-YVP80M4,EWSAF67-YVP90M4,EWSAF67-YVPEJ100M4,EWSAF67-YVPEJ112M4,EWSAF67-YVPEJ132M4,EWSAF67-YVPEJ63M4,EWSAF67-YVPEJ71M4,EWSAF67-YVPEJ80M4,EWSAF67-YVPEJ90M4,SLSAF67-Y0.18KW,SLSAF67-Y0.25KW,SLSAF67-Y0.37KW,SLSAF67-Y0.55KW,SLSAF67-Y0.75KW,SLSAF67-Y1.1KW,SLSAF67-Y1.5KW,SLSAF67-Y100M4,SLSAF67-Y112M4,SLSAF67-Y132M4,SLSAF67-Y2.2KW,SLSAF67-Y3KW,SLSAF67-Y4KW,SLSAF67-Y5.5KW,SLSAF67-Y63M4,SLSAF67-Y71M4,SLSAF67-Y80M4,SLSAF67-Y90M4,SLSAF67-YEJ100M4,SLSAF67-YEJ112M4,SLSAF67-YEJ132M4,SLSAF67-YEJ63M4,SLSAF67-YEJ71M4,SLSAF67-YEJ80M4,SLSAF67-YEJ90M4,SLSAF67-YS100M4,SLSAF67-YS112M4,SLSAF67-YS132M4,SLSAF67-YS63M4,SLSAF67-YS71M4,SLSAF67-YS80M4,SLSAF67-YS90M4,SLSAF67-YVP100M4,SLSAF67-YVP112M4,SLSAF67-YVP132M4,SLSAF67-YVP63M4,SLSAF67-YVP71M4,SLSAF67-YVP80M4,SLSAF67-YVP90M4,SLSAF67-YVPEJ100M4,SLSAF67-YVPEJ112M4,SLSAF67-YVPEJ132M4,SLSAF67-YVPEJ63M4,SLSAF67-YVPEJ71M4,SLSAF67-YVPEJ80M4,SLSAF67-YVPEJ90M4,DSZSAF67-Y0.18KW,DSZSAF67-Y0.25KW,DSZSAF67-Y0.37KW,DSZSAF67-Y0.55KW,DSZSAF67-Y0.75KW,DSZSAF67-Y1.1KW,DSZSAF67-Y1.5KW,DSZSAF67-Y100M4,DSZSAF67-Y112M4,DSZSAF67-Y132M4,DSZSAF67-Y2.2KW,DSZSAF67-Y3KW,DSZSAF67-Y4KW,DSZSAF67-Y5.5KW,DSZSAF67-Y63M4,DSZSAF67-Y71M4,DSZSAF67-Y80M4,DSZSAF67-Y90M4,DSZSAF67-YEJ100M4,DSZSAF67-YEJ112M4,DSZSAF67-YEJ132M4,DSZSAF67-YEJ63M4,DSZSAF67-YEJ71M4,DSZSAF67-YEJ80M4,DSZSAF67-YEJ90M4,DSZSAF67-YS100M4,DSZSAF67-YS112M4,DSZSAF67-YS132M4,DSZSAF67-YS63M4,DSZSAF67-YS71M4,DSZSAF67-YS80M4,DSZSAF67-YS90M4,DSZSAF67-YVP100M4,DSZSAF67-YVP112M4,DSZSAF67-YVP132M4,DSZSAF67-YVP63M4,DSZSAF67-YVP71M4,DSZSAF67-YVP80M4,DSZSAF67-YVP90M4,DSZSAF67-YVPEJ100M4,DSZSAF67-YVPEJ112M4,DSZSAF67-YVPEJ132M4,DSZSAF67-YVPEJ63M4,DSZSAF67-YVPEJ71M4,DSZSAF67-YVPEJ80M4,DSZSAF67-YVPEJ90M4,BSAF67-Y0.18KW,BSAF67-Y0.25KW,BSAF67-Y0.37KW,BSAF67-Y0.55KW,BSAF67-Y0.75KW,BSAF67-Y1.1KW,BSAF67-Y1.5KW,BSAF67-Y100M4,BSAF67-Y112M4,BSAF67-Y132M4,BSAF67-Y2.2KW,BSAF67-Y3KW,BSAF67-Y4KW,BSAF67-Y5.5KW,BSAF67-Y63M4,BSAF67-Y71M4,BSAF67-Y80M4,BSAF67-Y90M4,BSAF67-YEJ100M4,BSAF67-YEJ112M4,BSAF67-YEJ132M4,BSAF67-YEJ63M4,BSAF67-YEJ71M4,BSAF67-YEJ80M4,BSAF67-YEJ90M4,BSAF67-YS100M4,BSAF67-YS112M4,BSAF67-YS132M4,BSAF67-YS63M4,BSAF67-YS71M4,BSAF67-YS80M4,BSAF67-YS90M4,BSAF67-YVP100M4,BSAF67-YVP112M4,BSAF67-YVP132M4,BSAF67-YVP63M4,BSAF67-YVP71M4,BSAF67-YVP80M4,BSAF67-YVP90M4,BSAF67-YVPEJ100M4,BSAF67-YVPEJ112M4,BSAF67-YVPEJ132M4,BSAF67-YVPEJ63M4,BSAF67-YVPEJ71M4,BSAF67-YVPEJ80M4,BSAF67-YVPEJ90M4,GSAF67-Y0.18KW,GSAF67-Y0.25KW,GSAF67-Y0.37KW,GSAF67-Y0.55KW,GSAF67-Y0.75KW,GSAF67-Y1.1KW,GSAF67-Y1.5KW,GSAF67-Y100M4,GSAF67-Y112M4,GSAF67-Y132M4,GSAF67-Y2.2KW,GSAF67-Y3KW,GSAF67-Y4KW,GSAF67-Y5.5KW,GSAF67-Y63M4,GSAF67-Y71M4,GSAF67-Y80M4,GSAF67-Y90M4,GSAF67-YEJ100M4,GSAF67-YEJ112M4,GSAF67-YEJ132M4,GSAF67-YEJ63M4,GSAF67-YEJ71M4,GSAF67-YEJ80M4,GSAF67-YEJ90M4,GSAF67-YS100M4,GSAF67-YS112M4,GSAF67-YS132M4,GSAF67-YS63M4,GSAF67-YS71M4,GSAF67-YS80M4,GSAF67-YS90M4,GSAF67-YVP100M4,GSAF67-YVP112M4,GSAF67-YVP132M4,GSAF67-YVP63M4,GSAF67-YVP71M4,GSAF67-YVP80M4,GSAF67-YVP90M4,GSAF67-YVPEJ100M4,GSAF67-YVPEJ112M4,GSAF67-YVPEJ132M4,GSAF67-YVPEJ63M4,GSAF67-YVPEJ71M4,GSAF67-YVPEJ80M4,GSAF67-YVPEJ90M4,SCAF67-Y0.18KW,SCAF67-Y0.25KW,SCAF67-Y0.37KW,SCAF67-Y0.55KW,SCAF67-Y0.75KW,SCAF67-Y1.1KW,SCAF67-Y1.5KW,SCAF67-Y100M4,SCAF67-Y112M4,SCAF67-Y132M4,SCAF67-Y2.2KW,SCAF67-Y3KW,SCAF67-Y4KW,SCAF67-Y5.5KW,SCAF67-Y63M4,SCAF67-Y71M4,SCAF67-Y80M4,SCAF67-Y90M4,SCAF67-YEJ100M4,SCAF67-YEJ112M4,SCAF67-YEJ132M4,SCAF67-YEJ63M4,SCAF67-YEJ71M4,SCAF67-YEJ80M4,SCAF67-YEJ90M4,SCAF67-YS100M4,SCAF67-YS112M4,SCAF67-YS132M4,SCAF67-YS63M4,SCAF67-YS71M4,SCAF67-YS80M4,SCAF67-YS90M4,SCAF67-YVP100M4,SCAF67-YVP112M4,SCAF67-YVP132M4,SCAF67-YVP63M4,SCAF67-YVP71M4,SCAF67-YVP80M4,SCAF67-YVP90M4,SCAF67-YVPEJ100M4,SCAF67-YVPEJ112M4,SCAF67-YVPEJ132M4,SCAF67-YVPEJ63M4,SCAF67-YVPEJ71M4,SCAF67-YVPEJ80M4,SCAF67-YVPEJ90M4,MTNAF67-Y0.18KW,MTNAF67-Y0.25KW,MTNAF67-Y0.37KW,MTNAF67-Y0.55KW,MTNAF67-Y0.75KW,MTNAF67-Y1.1KW,MTNAF67-Y1.5KW,MTNAF67-Y100M4,MTNAF67-Y112M4,MTNAF67-Y132M4,MTNAF67-Y2.2KW,MTNAF67-Y3KW,MTNAF67-Y4KW,MTNAF67-Y5.5KW,MTNAF67-Y63M4,MTNAF67-Y71M4,MTNAF67-Y80M4,MTNAF67-Y90M4,MTNAF67-YEJ100M4,MTNAF67-YEJ112M4,MTNAF67-YEJ132M4,MTNAF67-YEJ63M4,MTNAF67-YEJ71M4,MTNAF67-YEJ80M4,MTNAF67-YEJ90M4,MTNAF67-YS100M4,MTNAF67-YS112M4,MTNAF67-YS132M4,MTNAF67-YS63M4,MTNAF67-YS71M4,MTNAF67-YS80M4,MTNAF67-YS90M4,MTNAF67-YVP100M4,MTNAF67-YVP112M4,MTNAF67-YVP132M4,MTNAF67-YVP63M4,MTNAF67-YVP71M4,MTNAF67-YVP80M4,MTNAF67-YVP90M4,MTNAF67-YVPEJ100M4,MTNAF67-YVPEJ112M4,MTNAF67-YVPEJ132M4,MTNAF67-YVPEJ63M4,MTNAF67-YVPEJ71M4,MTNAF67-YVPEJ80M4,MTNAF67-YVPEJ90M4,WXSAF67-WSS0.18KW,WXSAF67-WSS0.25KW,WXSAF67-WSS0.37KW,WXSAF67-WSS0.55KW,WXSAF67-WSS0.75KW,WXSAF67-WSS1.1KW,WXSAF67-WSS1.5KW,WXSAF67-WSS100M4,WXSAF67-WSS112M4,WXSAF67-WSS132M4,WXSAF67-WSS2.2KW,WXSAF67-WSS3KW,WXSAF67-WSS4KW,WXSAF67-WSS5.5KW,WXSAF67-WSS63M4,WXSAF67-WSS71M4,WXSAF67-WSS80M4,WXSAF67-WSS90M4,WXSAF67-WSSB100M4,WXSAF67-WSSB112M4,WXSAF67-WSSB132M4,WXSAF67-WSSB63M4,WXSAF67-WSSB71M4,WXSAF67-WSSB80M4,WXSAF67-WSSB90M4,WXSAF67-WSSVP100M4,WXSAF67-WSSVP112M4,WXSAF67-WSSVP132M4,WXSAF67-WSSVP63M4,WXSAF67-WSSVP71M4,WXSAF67-WSSVP80M4,WXSAF67-WSSVP90M4,WXSAF67-WSSVPB100M4,WXSAF67-WSSVPB112M4,WXSAF67-WSSVPB132M4,WXSAF67-WSSVPB63M4,WXSAF67-WSSVPB71M4,WXSAF67-WSSVPB80M4,WXSAF67-WSSVPB90M4。伺服電機渦輪渦桿減速機

SAF67減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.fulaina.cn/product/list-safxiliejiansuji-cn.html

推薦類似型號：S67減速機
